Electrical Insulation Tape Solutions for Transformers, Motors & Batteries
Electrical insulation tape sounds simple until a buyer has to choose one for a real assembly. A tape used to wrap a compact coil is not automatically right for transformer coil hold-down. A film tape used for lithium battery tab insulation is not the same as a filament tape used for pack bundling. And a “high temperature tape” is not always a suitable electrical insulation tape.
This guide compares four practical electrical insulation tape solutions for B2B buyers and engineers: polyimide tape, glass cloth tape, PET / polyester electrical tape, and filament reinforced electrical tape. The practical question is: what job must the tape perform inside the electrical assembly?
Start With the Job, Not the Tape Name
Most wrong selections start with a vague RFQ: “Please quote electrical insulation tape.” That phrase may mean thin insulation, coil wrapping, layer insulation, lead anchoring, transformer winding hold-down, lithium battery tab protection, or battery pack mechanical fixing.
A better first question is: is the tape insulating, wrapping, holding down, reinforcing, or only helping with assembly? If it must hold magnet wire or copper strip, tensile strength and adhesive compatibility matter. If it will contact transformer oil or face a battery-environment approval process, the adhesive system must be checked before price.
Four Tape Families Used in Electrical Insulation

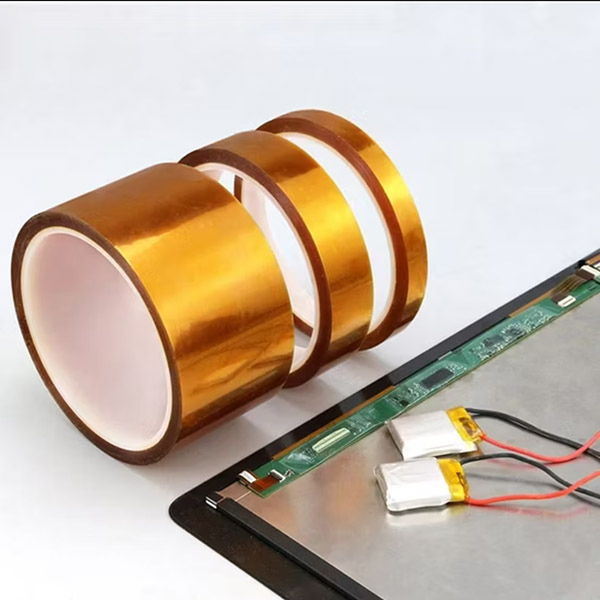

Polyimide tape is usually chosen when thin, heat-resistant electrical insulation is needed in compact assemblies. 3M Polyimide Film Electrical Tape 1205 data lists applications such as wrapping coils, transformers, capacitors, wire harnesses, and anchoring leads or terminal boards. That does not make polyimide tape a universal transformer insulation material, but it supports its role in thin local insulation and fixing.
Glass cloth electrical tape brings a woven backing and stronger mechanical support. It is better suited when the tape must survive wrapping tension, edge friction, heat, and handling stress. 3M Glass Cloth Electrical Tape 69 product information describes uses in coils, transformers, motors, end turns, lead anchors, and related electrical insulation applications.
Polyester electrical tape belongs in this page, but not as PET silicone tape. Polyester electrical tape is more commonly selected for layer insulation, coil covers, and capacitor wraps where a thin film construction and electrical strength are needed. 3M Polyester Film Electrical Tape 57 product information lists layer insulation, coil cover, and capacitor wrap applications.
Filament reinforced electrical tape should not be confused with ordinary filament tape or filament strapping tape used for packaging and mechanical bundling. In transformer work, electrical-grade filament reinforced tape can combine insulation support with strong hold-down. 3M Filament-Reinforced Electrical Tape 1076 is described for oil-filled distribution transformer applications and uses oil-compatible acrylic adhesive.
Transformer Insulation: First Identify the Transformer Type
“Transformer insulation tape” is too broad as a search term and too risky as a product claim. A small dry-type transformer, an oil-filled distribution transformer, and a large high-voltage power transformer do not use the same insulation logic.
For large oil-filled power transformers, tapes should not be presented as a replacement for the main insulation system. Pressboard, oil-paper, and cellulose-based materials are widely used in oil-filled transformer insulation systems. Adhesive tapes may appear as approved local wrapping, fixing, banding, or hold-down materials, but the transformer designer’s insulation system comes first.
For oil-filled distribution transformers, filament reinforced electrical tape deserves a stronger place in the conversation. It can hold down magnet wire, copper strips or sheets, and insulating materials during coil winding. In this application, oil-compatible acrylic adhesive and stable adhesion after exposure to transformer fluids matter as much as tensile strength.

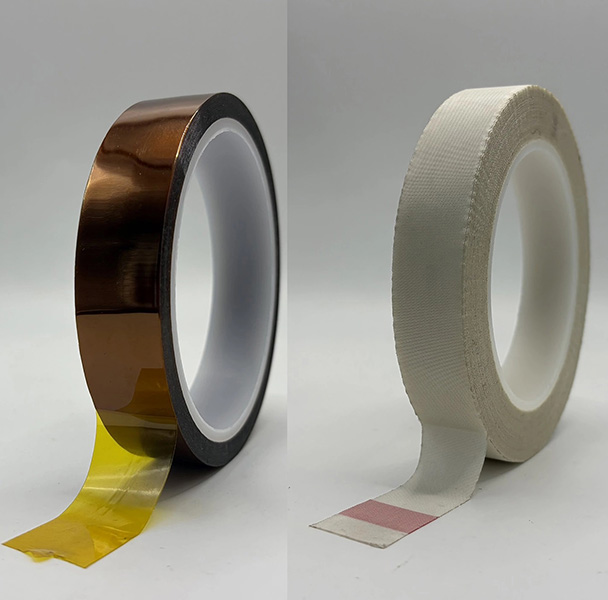

For dry-type transformers and smaller coils, the selection can open up. Polyimide and polyester tapes may be used for thin insulation, conductor wrap, or local electrical protection. Glass cloth tape can handle coil outer wrap, lead insulation, end-turn areas, and mechanical protection. Filament reinforced electrical tape fits where hold-down strength, coil banding, or lead anchoring is needed.
Motors and Coils Need More Than Dielectric Strength

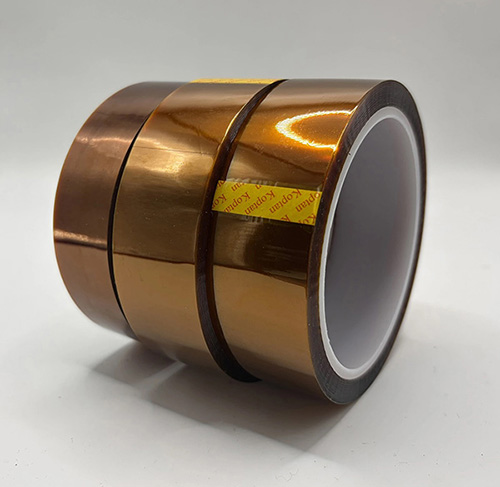

Motor winding insulation and coil wrapping put mechanical stress into the tape before the assembly ever reaches service. A film tape can be excellent for thin insulation, but it may not be the best choice for abrasive end-turn areas.
This is where glass cloth electrical tape becomes important. Its woven backing gives better resistance to tearing and mechanical abuse than a thin film tape. For coil outer wrap, lead anchoring, and end-turn fixing, buyers should check backing thickness, adhesive system, conformability, and later thermal exposure.
Polyimide tape still has a role where thickness is limited. Filament reinforced electrical tape may also fit where hold-down strength matters more than surface coverage. The mistake is treating every coil application as a dielectric problem only. In many winding operations, the tape must also behave like a small mechanical component.
Layer Insulation, Coil Covers, and Capacitor Wrap

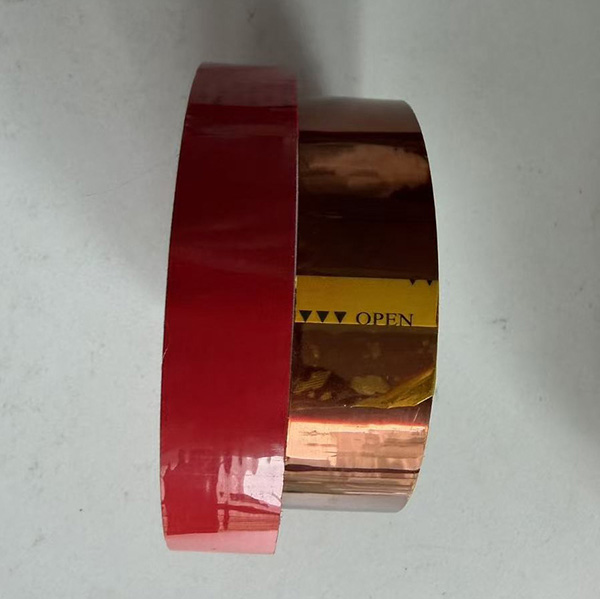

PET / polyester electrical tape should be presented honestly. It is not the most extreme high-temperature material in the group, and it should not be sold as a substitute for every polyimide or glass cloth application. Its value is different: thin film construction, good handling, layer insulation, coil covers, and capacitor wrap.
For capacitor wrapping and regular layer insulation, buyers often care about thickness build-up, clean unwind, consistent slitting, and electrical performance from batch to batch. A tape that is too thick may create a packing problem. A tape that unwinds poorly may create problems in automated winding.
Use polyester electrical tape when the temperature class, insulation requirement, and mechanical load fit the application, not merely because it is cheaper.
Lithium Battery Tab Protection and Pack Fixing
Battery tape selection should be split by function. Tab insulation, terminal protection, local electrical insulation, and pack bundling do not use the same tape logic. Treating them as one “battery tape” category can lead to the wrong adhesive, wrong backing, and wrong approval path.
Acrylic adhesive polyimide tape can be considered for lithium battery tab insulation, terminal protection, and narrow local insulation areas where thin high-temperature electrical insulation is required. However, battery use should be validated more strictly than ordinary electrical wrapping. Buyers should confirm electrolyte resistance, dielectric performance, adhesive aging, flame requirements, contamination risk, and customer approval.
Silicone adhesive polyimide tape should be treated carefully in lithium battery applications. It may work in some approved high-temperature insulation locations, but it should not be presented as the default choice for tab, termination, or electrode-related insulation. EV battery electrode-fixing tape references more commonly point to electrolyte-compatible acrylic adhesive systems, often with PET or PP facestocks rather than generic silicone adhesive film tapes.
Full cell wrapping, flexible busbar bonding, sensing circuit bonding, and compression pad bonding usually require specialty EV battery tape systems. They should be evaluated separately from general electrical insulation tapes.
Pack bundling is different. Rubber adhesive filament strapping tape may be used for mechanical holding, temporary bundling, or pack fixing where high tack and tensile strength are useful. Some buyers may search this as filament tape, filament tapes, reinforced filament tape, or battery pack filament strapping tape. These terms can bring traffic, but they do not automatically mean electrical insulation.
Filament Reinforced Tape vs. Filament Strapping Tape
This distinction matters because many RFQs and searches simply say filament tape, filament tapes, filament reinforced tape, or reinforced filament tape without explaining whether the buyer needs packaging strength, battery pack bundling, or electrical-grade transformer hold-down.
| Use Case | Better Term | Typical Role |
| Oil-filled transformer coil winding | Filament reinforced electrical tape | Magnet wire, copper strip, and insulating material hold-down |
| Battery pack bundling | Rubber adhesive filament strapping tape | Mechanical holding, bundling, temporary fixing |
| Electrical insulation claim | Electrical-grade reinforced tape | Requires dielectric and compatibility data |
| Packaging or general bundling | Filament strapping tape | Not the same as transformer electrical tape |
For transformer customers, use filament reinforced electrical tape. For battery pack mechanical fixing, use filament strapping tape. Mixing the two may bring the wrong inquiry, wrong sample, and wrong approval path.
Choose by Function
A simple rule works better than a long product list. Use polyimide tape for thin high-temperature insulation, glass cloth tape for coil wrap and mechanical protection, polyester electrical tape for layer insulation and capacitor wrap, filament reinforced electrical tape for transformer coil hold-down, and rubber filament strapping tape for battery pack bundling.
That does not mean these choices are automatic. Each tape still needs to match the customer’s temperature exposure, dielectric requirement, adhesive restriction, approval process, and mechanical load. The best electrical insulation tape solution is usually the one that solves the real function with the least unnecessary risk.
What Buyers Should Confirm Before RFQ
A useful RFQ should include the application, not only the tape name. Is it for transformer coil winding, motor winding, capacitor wrap, lithium battery tab protection, or pack fixing? Is the tape expected to insulate, wrap, hold down, reinforce, or only support assembly?
For transformer projects, state whether the design is oil-filled distribution, dry-type, small transformer, or large power transformer. If oil exposure is involved, ask about oil-compatible adhesive and transformer fluid exposure. For battery projects, separate tab insulation from pack bundling and state whether electrolyte exposure, flame requirements, contamination control, or customer approvals apply.
Also confirm film thickness, total thickness, width, roll length, adhesive system, dielectric requirement, mechanical strength requirement, storage conditions, and sample testing quantity. Custom slitting often matters as much as the base material, especially for narrow battery tabs, transformer winding, capacitor wrap, and lead anchoring.
Related Products:
PET Fiberglass Cloth Tape F-390
Standard Filament-Reinforced Electrical Tape F-380
FAQ
It can be used for thin local insulation, coil wrapping, lead anchoring, or terminal board fixing in approved designs. It should not be described as a replacement for the main insulation system in large oil-filled power transformers.
It is mainly used where electrical tape also needs hold-down strength, especially in oil-filled distribution transformer coil winding for magnet wire, copper strip, and insulating material fixing.
No. Filament strapping tape is usually for mechanical bundling or fixing. Filament reinforced electrical tape is an electrical-grade product used where insulation support and reinforced hold-down are required.
It should not be the default choice for battery tab, termination, or electrode-related insulation. Many battery tape constructions specify electrolyte-compatible acrylic adhesive, so silicone adhesive polyimide tape should only be used when approved for the exact battery location.
Send the application, tape function, width, thickness limit, adhesive preference, operating environment, dielectric requirement, and whether oil, electrolyte, flame, or customer approval is involved.
References / Source Notes
- 3M Polyimide Film Electrical Tape 1205 datasheets list applications including wrapping coils, transformers, capacitors, wire harnesses, and anchoring leads or terminal boards.
- 3M Glass Cloth Electrical Tape 69 product information describes coil, transformer, and motor insulation uses, including end turns, lead anchors, and related electrical applications.
- 3M Polyester Film Electrical Tape 57 product information lists layer insulation, coil cover, and capacitor wrap applications.
- 3M Filament-Reinforced Electrical Tape 1076 product information describes oil-filled distribution transformer applications, including holding down magnet wire, copper strips, and insulating materials, with oil-compatible acrylic adhesive.
- Avery Dennison EV battery electrode-fixing tape information describes electrolyte-compatible acrylic adhesive systems with PET / PP facestocks for electrode fixing applications.
