Filament Tape for Pallet Stabilization: When Stretch Film Isn’t Enough

Pallet Stabilization with Filament Tape: Where Stretch Film Needs Targeted Reinforcement

A pallet can look properly wrapped and still fail in handling. The film may be tight, the load may look clean, and the warehouse team may have followed the usual wrapping routine. Yet after forklift movement, road vibration, or export shipping, the top layer shifts, carton corners crush, or a mixed pallet starts leaning.

A California FACE report described a fatal warehouse incident in which cases of bottled water fell from an unstable, shrink-wrapped pallet during forklift handling. The lesson is not that one tape, film, or strap can prevent every accident. It is that pallet stability should be treated as a load-design issue, not just a wrapping habit.

That is where filament tape for pallet stabilization can make sense. It should not be sold as a magic replacement for stretch film. Its real value is more specific: targeted reinforcement at the weak points where stretch film alone may not provide enough control.

For packaging engineers and logistics teams, the practical question is not whether tape is stronger than film. It is where the pallet is failing: containment, local reinforcement, edge stress, or full restraint.

Pallet Loads Often Fail at Local Stress Points

Many pallet failures do not happen across the whole wrapped unit. They start at one weak point. A top row slides. A carton flap opens. A sharp corner cuts into the film. A smooth printed box shifts against another box. A lower carton compresses, and the upper layers lose support.

When that happens, adding more stretch film may only cover the problem instead of fixing it. The load may need localized support before or during wrapping. This is where pallet reinforcement tape can play a useful role.

Where Stretch Film Leaves Stability Gaps

Stretch film is still one of the most useful materials for pallet load securing. It wraps the unit, keeps cartons together, reduces dust exposure, and helps create containment force around the load. For regular carton pallets with stable stacking patterns, a well-set wrapping process may be enough.

The difficulty appears with heavy, tall, mixed, or irregular loads. Film is flexible by design. It can stretch, relax, puncture, or lose effective tension when the load shape changes during handling. If the issue is a specific sliding row, weak top layer, or carton edge stress, more film does not always produce better unit load stability.

That does not mean stretch film is poor. It means film and tape solve different problems.

Filament Tape as Localized Reinforcement

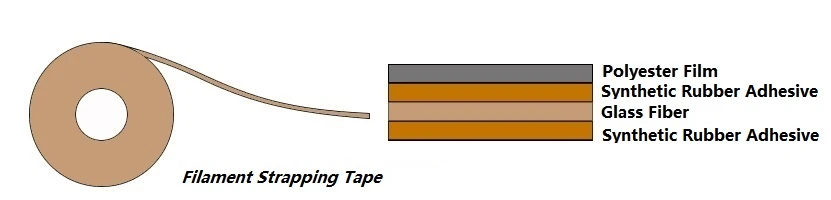

Filament tape is reinforced with fiberglass strands, giving it higher tensile strength and lower elongation than standard carton sealing tape. In pallet applications, that matters because the tape can hold a local zone in place instead of stretching too much when the load begins to move.

A reinforced filament tape can be used for top-layer locking, horizontal banding, carton flap reinforcement, or stabilizing rows that tend to slide. In some applications, filament strapping tape acts like a local “seat belt” for the pallet—not covering the entire load, but controlling the part most likely to move.

The useful comparison is not simply stretch film vs filament tape. A better way to think about it is this: film provides containment, filament tapes provide reinforcement, edge protectors distribute pressure, and PET or woven strapping handles full restraint when the load requires it.

When Tape Works Better Than Adding More Film

Adding tape is worth testing when the failure is consistent and localized. If the upper layer of cartons shifts during transport, a top-locking strip may help more than another full wrap cycle. If cartons open at the same flap area, targeted tape reinforcement may work better than thicker film. If a mixed pallet has gaps between cartons, localized banding can help stabilize the problem row before wrapping.

Filament tape for palletizing can also support companies trying to reduce stretch film usage without risking load movement. This should be tested carefully. One or two tape bands cannot automatically replace multiple film layers. But a standard film pattern plus targeted filament tape reinforcement may perform better than simply adding more film to the entire pallet.

This is especially relevant when the main problem is not dust protection or surface coverage, but cargo shifting, top-layer movement, or carton edge stress.

Application Patterns That Make Sense

Horizontal banding is the most common and practical method. A strip of pallet strapping tape is applied around the section where cartons tend to slide or bulge. This may be the upper third of the pallet, the middle row, or a specific weak section.

Top-layer locking is useful before stretch wrapping, especially when light cartons sit above heavier goods or when mixed pallets do not interlock cleanly.

Corner reinforcement should be handled carefully. Filament tape can help hold an edge or flap in position, but narrow tape under high tension can cut into weak carton surfaces. For carton and pallet reinforcement, edge protectors are often the safer partner. They spread the force and reduce the risk of kraft liner delamination.

One method I would not recommend as standard practice is full vertical anchoring from the top of the load to the pallet bottom. Filament tape depends on adhesive contact. Wooden pallets can be dusty, rough, damp, or uneven, so the bottom bond is often unreliable. When vertical restraint is required, PET strapping, woven strapping, or a designed strapping system is usually safer.

Tape Selection Checks for Pallet Reinforcement

For pallet reinforcement, do not choose tape by roll price alone. Ask for tensile strength, elongation, peel adhesion, total thickness, backing material, and adhesive type. Tensile strength and elongation help show whether the tape can maintain holding force without stretching too much. ASTM D3759/D3759M is commonly used for tensile strength and elongation of pressure-sensitive tapes. ASTM D3330/D3330M is commonly used for peel adhesion, while ASTM D3652/D3652M covers tape thickness measurement.

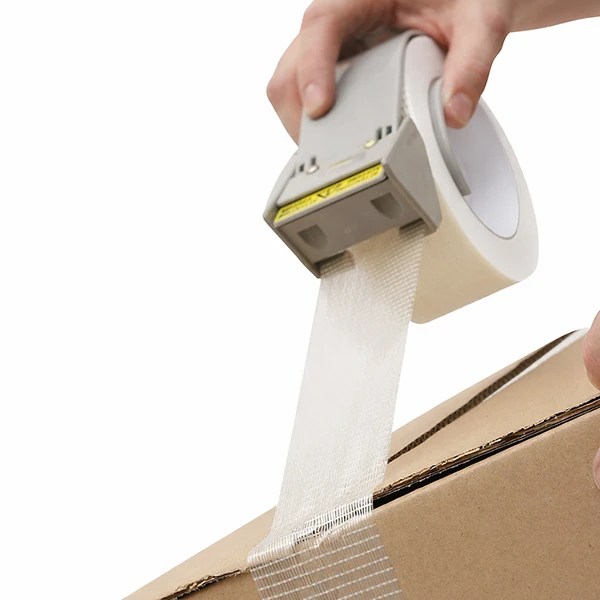

In many pallet applications, a mono filament tape or standard filament strapping tape is the first option to test because the main holding force runs along the tape length. A bi-directional filament tape may be useful when the load creates tearing risk in more than one direction, such as rough carton edges, exposed corners, irregular packages, or mixed pallet loads that twist during handling.

For most buyers, the decision should not be based on which structure sounds stronger. The better question is which reinforced filament tape matches the actual failure mode: linear sliding, carton edge tearing, top-layer movement, or rough handling.

For carton and pallet reinforcement, the adhesive question is usually not “which chemistry sounds better.” It is whether the tape can balance quick tack, holding power, removal behavior, and the actual carton surface condition. A tape that holds extremely well may still create problems if it tears printed cartons, damages barcodes, or leaves residue during unpacking.

Labor, Automation, and Real TCO

A serious B2B cost comparison must include labor. Stretch film is easy to automate with turntable or rotary-arm wrappers. Filament tape reinforcement is often manual or semi-manual, so it should not be added blindly.

The better TCO question is narrower: where does a few seconds of targeted tape application prevent a costly failure? If one high-risk pallet type causes repeated claims, repacking, or customer complaints, extra reinforcement may be justified. If a standard pallet already passes handling and delivery checks, adding tape may only add labor.

Track material use, application time, load condition after handling, tape lift, carton damage, and removal behavior. Without that data, “cost saving” is only a guess.

Where Pallet Tape Applications Usually Go Wrong

Several tape failures come from poor application rather than poor tape. Dusty cartons reduce adhesion. Damp surfaces increase lift-up risk. Narrow tape on a heavy load can cut into carton faces. Tape placed over barcodes, shipping labels, or printed customer information can cause receiving problems.

Another mistake is using filament tape to compensate for poor pallet design. If the stacking pattern is unstable, the bottom cartons are under-specified, or the center of gravity is too high, tape can reduce symptoms but cannot redesign the unit load.

Do not use tape as a full substitute for strapping where the load requires vertical restraint. Do not assume high tensile strength alone makes a tape suitable for every pallet. The carton surface, adhesive contact area, load shape, and unpacking method all matter.

Test Before Changing the Pallet Packaging Standard

Before changing a pallet packaging method, run a small trial with real shipping conditions. Use the actual carton grade, pallet size, load height, product weight, wrapping pattern, and warehouse handling method.

Compare the current film-only method with a hybrid structure: standard stretch film plus selected filament tape reinforcement. Test two or three tape widths or tensile grades. Observe whether the tape reduces top-layer movement, whether it lifts after storage, whether it tears the carton face during removal, and whether it interferes with scanning or labeling.

If formal transport validation is required, ISTA 3E may be relevant for unitized loads of similar packaged products, while mixed-load pallets may require a different internal or customer-specific validation method.

A practical trial request should include pallet size, load weight, carton material, wrapping method, transport route, storage conditions, and the exact failure problem. With that information, a supplier can recommend whether additional film, filament tape reinforcement, edge protectors, or strapping is the safer option.

Reinforce the Failure Point, Not the Whole Pallet Blindly

Filament tape for pallet stabilization works best when it is used with a clear purpose. It is not a full replacement for stretch film, and it is not a full substitute for PET strapping. Its strongest role is local reinforcement: horizontal banding, top-layer locking, carton edge support, flap reinforcement, and targeted reduction of repeated pallet movement.

For B2B buyers, the right decision is not “film or tape.” It is “which failure point needs which material?” Use stretch film for containment, filament tape for reinforcement, edge protectors for force distribution, and strapping where full restraint is required.

If you are testing a new pallet reinforcement method, share your pallet size, load weight, carton surface, wrapping process, and transport route. A small trial with the right tape grade is more useful than guessing from roll price alone.
