How to Select Powder Coating Tape for Clean Edges and Easy Removal
Don’t Start with the Temperature Rating Alone
A powder coating tape can look perfectly fine before the part enters the oven. The edge is pressed down, the color is easy to see, and the operator moves on. The real question comes later: after the bake cycle, does the tape still peel off cleanly, or does it leave adhesive, tear into pieces, or allow powder to creep under the edge?
That is where many tape choices succeed or fail.
Buyers often start with one question: “What temperature can this tape handle?” It is a fair question, but it is not enough. Powder coating masking tape has to match the full process, not just a number on a catalog page. Bake time, part surface, adhesive type, tape thickness, cooling time, and removal method all change the result.
A good powder coating tape is not simply the tape with the highest temperature label. It is the tape that survives the actual bake cycle, keeps the masking edge clean, and removes without adding cleanup work.
The Tape Has to Survive More Than the Oven
Powder coating tape does more than stick to a part. It has to survive handling, spraying, transfer to the curing oven, baking, cooling, and removal. If it only survives the oven but fails during removal, it has not really passed the job.
For powder coating masking, the tape usually needs to do four things well: stay in place, hold a clean edge, resist shrinking or curling, and come off without residue or tearing. In many technical product references for powder coating masking tapes, the same concerns appear again and again: sharp mask lines, clean removal after baking, and stable performance during the bake cycle.
This is why a simple room-temperature tack test can mislead buyers. A tape that feels sticky on the bench may still curl after the bake. Another tape that feels less aggressive may remove more cleanly after curing. What matters is the result after the full coating process.
Clean Edge Lines Are Where Good Tape Pays Off
Clean edge lines are not just cosmetic. In powder coating, a poor masking edge can mean extra sanding, touch-up, rework, or scrap. If powder crosses the masking line, the operator may need to repair the part. If the edge chips during tape removal, the finish may no longer meet the customer’s requirement.
Tape thickness also plays a role. A thicker tape may be easier to handle and stronger during removal, but it can create a more visible coating step at the masking line. A thinner film may help edge definition, but it still needs enough strength to remove without breaking after baking.
For parts where the masking line is visible to the final customer, this detail matters. The tape edge is not just a boundary during spraying. It becomes part of the finished appearance.
This is where polyester silicone tape is often a practical starting point for powder coating. It is visible, easy to apply, and commonly used for clean paint lines in powder coating masking. But even then, the tape still needs to be tested on the real part, not just selected from a product description.
Residue After Baking Is a Process Cost, Not Just a Tape Defect
On a busy coating line, residue is never just a small problem. It stops the flow.
Someone has to clean it. Someone has to inspect the part again. If scraping or solvent wiping is needed, the labor cost can quickly become more important than the tape price.
This is why powder coating masking tape residue should be evaluated as a process cost. A cheaper roll may not be cheaper if it adds cleaning time to every part. A high temp tape for powder coating should remove cleanly after the actual curing process, not only during a short sample pull at room temperature.
Residue can come from several causes: the wrong adhesive system, excessive bake exposure, surface incompatibility, aging stock, pressure during application, or removal at the wrong time. It is not always fair to blame only the tape. But if the same residue appears repeatedly under the real process, the tape construction is not a good fit.
Bake Time, Cooling, and Removal Matter Too
Heat exposure is not only about peak temperature. Powder coating has a curing schedule, and that schedule should come from the powder supplier’s technical data and the measured part temperature, not from the tape label alone.
Some powder coating processes may fall within a common high-temperature curing range, but that should be treated as a process reference, not a universal rule. A thin aluminum part and a heavy steel part may not behave the same way in the same oven. The part’s actual metal temperature matters.
Cooling also matters. Some tapes peel differently when removed warm compared with fully cooled parts. A tape may come off cleanly in one condition and tear or transfer adhesive in another. That is why the trial should copy the production removal method as closely as possible.
The safest way to describe the requirement to a supplier is not just “high temperature.” Say what the tape must do: survive the bake cycle, keep the edge closed, remove in one piece, and leave no adhesive that requires extra cleanup.
Polyester Silicone Tape or Polyimide Tape?
Different masking tapes can work in powder coating, but they do not serve the same purpose.
| Tape Type | Better Starting Point | What Buyers Should Verify |
| Polyester silicone tape | Common powder coating masking, clean edge lines, practical cost control | Bake cycle, clean one-piece removal, residue, edge lift |
| Polyimide tape | Higher heat margin, thinner masking, or tighter edge-control trials | Whether the added cost is necessary for the process |
For many general powder coating jobs, polyester silicone tape is often a practical first material to test. It has a good balance of visibility, edge control, cost, and clean removal. Green polyester tape for powder coating may also help operators quickly confirm placement and removal on the line.
Polyimide tape can be worth testing when the process is more demanding or the masking area is small and precise, but it should not be treated as automatically better.
The right question is not “Which tape is the highest grade?” The right question is “Which tape fits this process window with the least rework?”
The Adhesive Is Usually Where Removal Problems Start
The film gets most of the attention, but the adhesive often decides the removal result.

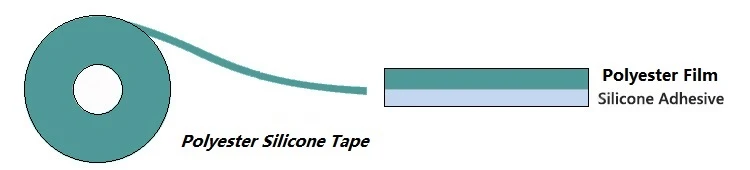

For powder coating tape, silicone adhesive is commonly used because it is better suited for high-temperature masking and clean removal after baking. That does not mean every silicone adhesive tape performs the same way. Coating weight, adhesive formulation, film thickness, and storage condition can all affect removal.
Rubber or standard acrylic adhesive systems should not be assumed suitable for powder coating bake cycles unless the supplier clearly rates them for the actual temperature, dwell time, and removal condition. This is not about saying one adhesive family is always bad. It is about not using general-purpose tape in a process that needs heat-aged clean removal.
A good sample test should look at adhesive transfer, not just whether the tape stayed attached.
Failure Signs That Show Up After the Bake
Most powder coating tape failures are easy to miss before curing. They usually show up after the bake, during removal, or during final inspection.
Watch for these signs:
- edge lift or curling after bake
- powder bleed under the tape edge
- adhesive residue after removal
- tape shrinking away from the masking line
- tape tearing instead of removing in one piece
- uneven paint line or coating step
- extra wiping, scraping, or sanding after tape removal
One failure is not always enough to reject a tape. The part may have been dirty, the tape may have been applied with poor pressure, or the removal timing may be different from production.
In practice, edge lift on aluminum or formed metal parts is not always the tape’s fault. Sometimes it comes from inconsistent application pressure, oil on the surface, or a curved profile that needs a narrower strip or die-cut shape. If the same issue repeats across several parts, though, the tape is probably not matched to the process.
Run a Small Trial Before Bulk Purchase

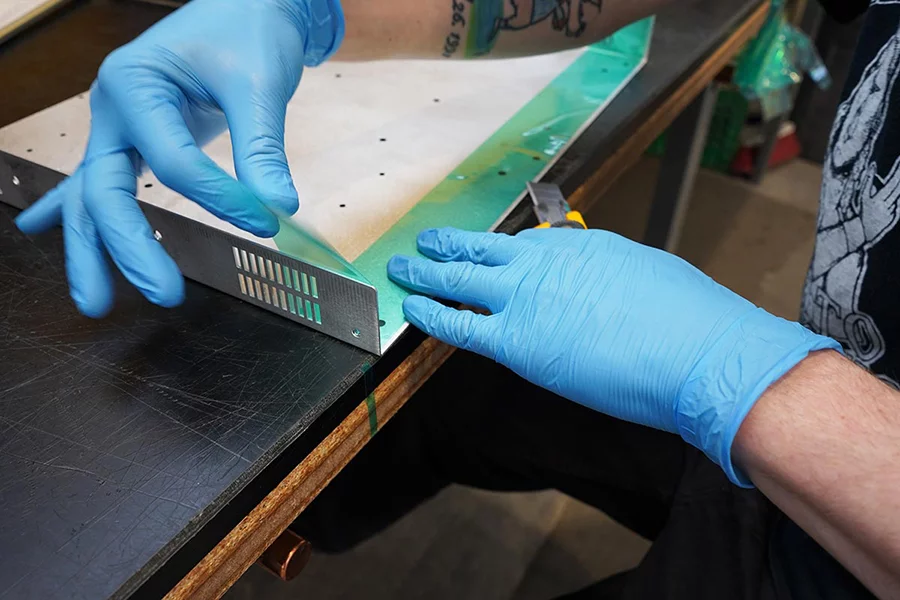

A short tape trial is cheaper than a production problem. Use the real part surface, real coating process, and real removal method. Do not approve powder coat tape only because it feels sticky on a clean test panel.
A simple trial can look like this:
| Trial Check | What to Observe |
| Edge lift after bake | Does the tape edge curl or open? |
| Powder bleed | Is powder crossing the masking line? |
| Residue after removal | Is adhesive left on the part? |
| Tape tearing | Does the tape remove in one piece? |
| Cleanup time | Is extra wiping or scraping needed? |
| Edge quality | Is the paint line clean enough for production? |
Test more than one part if the job is important. Apply the tape the way operators will apply it. Remove it at the same stage used in production. The goal is not to create a laboratory report; it is to find out whether this tape makes the line easier or harder to run.
What to Tell the Supplier When Asking for Samples
A sample request does not need to read like a long engineering specification. A few clear details are usually enough for a supplier to suggest a better starting tape.
Tell the supplier:
- application: powder coating masking
- part surface: aluminum, steel, coated metal, or other substrate
- bake temperature and time, if known
- required tape width
- need for clean removal after curing
- whether sharp edge lines or die-cut shapes are needed
If you know the part has deep holes, slots, tight masking areas, or repeated shapes, mention that too. Custom slit rolls or die-cut masking shapes can sometimes reduce labor and improve repeatability. They are not necessary for every job, but they can help when operators are masking the same area over and over.
Choose the Tape That Reduces Rework
The best powder coating masking tape is not always the one with the highest temperature rating or the lowest roll price. It is the one that gives the cleanest edge, removes without extra cleanup, and keeps the coating process predictable.
For many jobs, polyester silicone tape is a practical starting po int. For tighter or higher-risk masking, polyimide tape may be worth testing. But no material name replaces a real bake trial.
A cheaper powder coating tape can become expensive if it adds cleaning, sanding, or rework to every part. Process cost matters more than roll price.
Need a more reliable starting point for your powder coating masking tape trial? Tell us your bake cycle, part material, tape width, and the biggest issue you want to avoid — edge bleed, residue, tearing, or cleanup time. We can suggest suitable tape options for sampling.
FAQs
There is no single best tape for every powder coating job. The right choice depends on the bake cycle, part surface, edge requirement, removal method, and whether residue is acceptable. Polyester silicone tape is often a practical first material to test.
Not exactly. Powder coat tape is a type of high temp masking tape, but it also needs to handle the powder coating process: edge stability, curing, clean removal, and residue control.
Residue can come from the wrong adhesive system, excessive heat exposure, surface incompatibility, tape aging, or removal timing. The tape should be tested on the real part and bake cycle before bulk purchase.
Yes. Polyester silicone tape is commonly used for powder coating masking. Buyers should still verify clean edge lines, bake performance, and removal behavior under their own process conditions.
Consider polyimide tape when the process needs a wider heat margin, thinner masking, or stricter edge control. It is not automatically required for every powder coating process.
Yes, depending on the supplier’s converting capability. Custom slit widths or die-cut shapes can reduce masking labor and improve repeatability for holes, slots, and repeated part designs.
