PTFE & PET Tapes for High-Temperature Packaging and Thermal Equipment
Application Summary

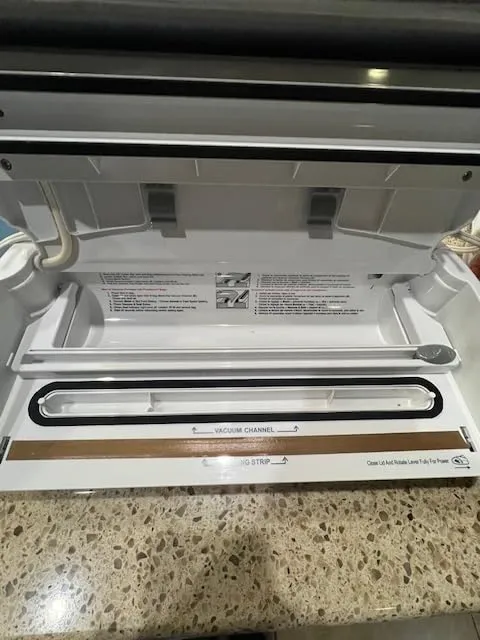

In industrial packaging and thermal processing, Heat Sealing Machines—including L-Bar Sealers, Flow Wrappers, and Vacuum Chamber Sealers—operate at high temperatures to seal food, pharmaceutical, and plastic film products. Continuous exposure to heat and contact with molten plastics can lead to adhesion, surface contamination, or operational downtime.PTFE Glass Cloth Tape, PTFE Film Tape, and PET Silicone Tape provide reliable solutions for protecting sealing bars, rollers, and irregular heated surfaces. Their high-temperature stability, low friction, and engineered adhesives ensure non-stick protection, controlled release, and consistent sealing performance. These tapes are widely used by packaging machinery manufacturers, food packaging companies, and industrial thermal equipment suppliers to improve uptime and product quality.
Common Problems (Failure Modes)
Edge Lift: Tape edges can lift on heated rollers or sealing bars, pulling in plastic film and causing uneven seals or line stoppages. PTFE Glass Cloth Tape with reinforced backing minimizes this risk.
Adhesive Transfer: Conventional tapes may soften under heat, leaving residues on sealing surfaces and contaminating packaging materials. PTFE and PET Silicone Tapes use thermally stable adhesives to prevent transfer.
Static Charge: High-speed plastic films can accumulate static, causing uneven film handling and misaligned seals. Certain PTFE tapes offer anti-static properties to ensure smooth material movement.
Non-Stick Performance: Melted PE/PP or laminated films may stick to heated surfaces. PTFE coatings provide ultra-low friction, reducing maintenance and ensuring consistent seal quality.
Dimensional Shrinkage (PET): PET tapes may shrink above 180°C continuous exposure, exposing heating elements. For prolonged high-temperature runs, PTFE-based tapes are recommended.
When edge lift, adhesive transfer, film sticking, or weak seals appear, start with the observed failure pattern rather than replacing the tape based on temperature rating alone. Our PTFE heat sealing tape troubleshooting guides cover bar preparation, installation tension, tape wear, residue, and process-related sealing problems.
Recommended Tape Types
PTFE Glass Cloth Tape:
Reinforced with glass cloth for dimensional stability.
Thickness: 0.13–0.18 mm.
Continuous temperature: 260°C.

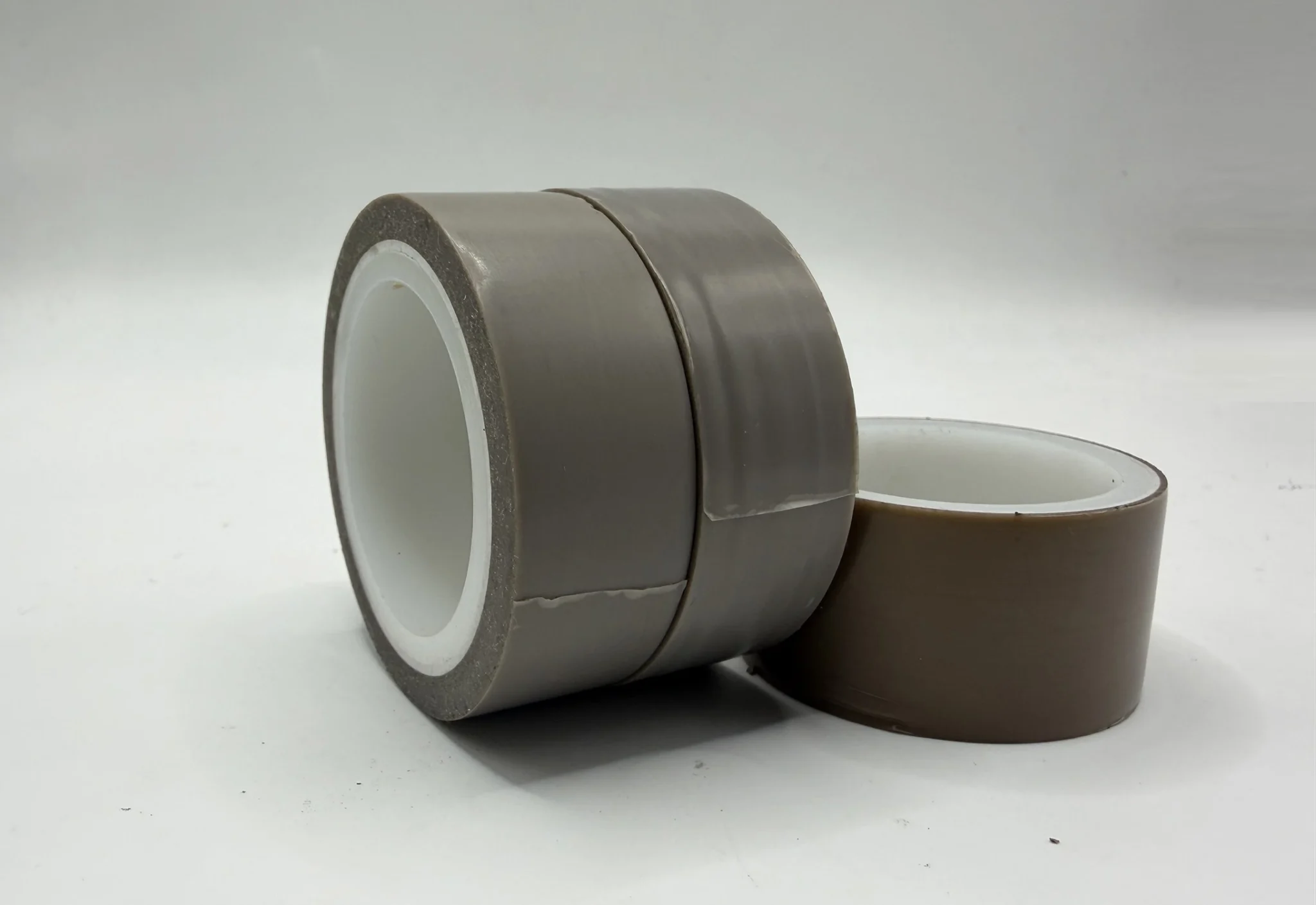

PTFE Film Tape (Skived):
Flexible, thin PTFE film for small or irregular heated surfaces.
Thickness: 0.08–0.18 mm (total thickness including adhesive).
Continuous temperature: 260°C.
Key Applications: Precision sealing tools, mandrels, or customized thermal processing lines.
PTFE Coated Glass Cloth Tape T-710
PET Silicone Tape:
Polyester substrate with silicone PSA adhesive.
Thickness: 0.06–0.10 mm.
Continuous temperature: 180–200°C; short-term peaks: 220°C.
Key Applications: Lower-temperature equipment protection, insulation around non-contact heated areas, and temporary peripheral masking where continuous exposure stays within the PET tape’s working range.
PTFE Glass Cloth Tape vs PTFE Film Tape: Which One Fits Heat Sealing Better?
For most continuous heat sealing lines, PTFE glass cloth tape is the safer starting point because the glass cloth backing gives better dimensional stability, wear resistance, and edge strength. It is commonly used on sealing bars, heated jaws, rollers, and packaging equipment where the tape must withstand repeated pressure, film contact, and cleaning cycles.
PTFE film tape is different. Its skived PTFE film surface is smoother and more flexible, which can be useful on small heated tools, curved surfaces, mandrels, or areas where a smoother release surface is more important than long service life. The trade-off is that pure PTFE film tape normally has lower mechanical reinforcement than PTFE-coated glass cloth tape, so it may wear faster on high-speed or abrasive sealing lines.
A practical rule is simple: choose PTFE glass cloth tape when downtime, abrasion, and repeated sealing pressure are the main concerns. Choose PTFE film tape when smooth release, flexibility, or low surface texture matters more. PET silicone tape should be treated as a lower-temperature auxiliary option, not the main tape for continuous high-temperature sealing bars.
Where the choice is still unclear, our PTFE tape comparison articles examine PTFE film and PTFE-coated glass cloth by surface smoothness, flexibility, abrasion resistance, dimensional stability, and expected machine conditions.
Selection Checklist
Substrate Compatibility: Confirm adhesion to rollers, sealing bars, and ceramic heating plates.
Temperature Resistance: Use PTFE for continuous 260°C applications; PET only for 180–200°C protection.
Dwell Time: Tape must withstand prolonged exposure without residue or loss of adhesion.
Peel Adhesion: Ensure proper adhesion to prevent edge lift, while allowing residue-free removal.
Non-Stick & Controlled Release: PTFE tapes ensure low friction; silicone PSA ensures low outgassing and minimal surface contamination.
Dimensional Stability: Consider PET shrinkage for high-temperature continuous runs.
Before approving a bulk order, review our PTFE heat sealing tape buying guides for sample testing, thickness and adhesive checks, machine data to include in an RFQ, and trial conditions that should be recorded.
Typical Tape Constructions
| Tape type | Common construction | Typical role | Temperature wording |
|---|---|---|---|
| PTFE coated glass cloth tape | PTFE-coated fiberglass cloth + silicone PSA | Repeated heat, pressure and abrasion | Up to 260°C for selected grades; confirm by TDS |
| PTFE film tape | Skived PTFE film + silicone PSA | Smooth release and conformability | Grade-specific; confirm continuous and peak limits |
| PET silicone tape | PET film + silicone PSA | Peripheral masking and short-cycle protection | Typically up to 200°C for qualified short cycles |
Related Product
PTFE Series: Non-stick, high-temperature tapes for heat sealing and thermal processing.
PET Silicone Tape: Equipment protection, masking, and peripheral coverage.
PTFE Glass Cloth Tape: Reinforced for high-speed, continuous industrial packaging lines.
Documents We Provide
TDS (Technical Data Sheet): Detailed technical specifications.
Traceability: Batch traceability for industrial quality control.
Standards Reference: ASTM D149 (dielectric), ASTM D3330 (peel), ASTM D3759 (tensile), UL 510 flame retardance where applicable.
Contact Our Engineers:
Get customized widths, die-cut shapes, and technical support for high-temperature heat sealing applications.
Request a sample roll for sealing bar trials, or send your sealing temperature, film type, machine speed, and current failure issue for tape selection.
