Kapton Tape for Motor Winding Insulation: Heat Aging, Wrap Stability, and Buyer Checks

Using Polyimide / Kapton Tape in Motor Windings: What Buyers Should Check Before Ordering

Introduction

Some tapes look fine when they leave the winding bench. The trouble shows up later: after baking, varnish, heat cycling, or tight coil-end tying. That is why buyers searching for Kapton tape for motor winding insulation should not stop at “Is the film heat resistant?” The better question is: what is the tape expected to do in this motor — local insulation, holding, wrapping, protection, or a mix of these jobs?

Polyimide tape, often searched as Kapton tape, can be useful in motor coils, but it is not a complete motor insulation system. It works alongside enamel wire, slot liners, phase insulation paper, lead wire sleeving, varnish or resin, and the motor maker’s validation process. This guide focuses on practical checks before ordering polyimide insulation tape for winding work.

Where Kapton-Type Tape Fits in Motor Windings

Before asking for a quotation, define the job of the tape. A motor winding insulation tape used only to hold leads in place before varnish does not face the same risk as a tape expected to remain as part of a long-term local insulation layer.

In production, the same roll may be used for lead wire joints, end-turn bundling, coil edge protection, local phase separation, or temporary holding before resin or varnish. Those uses sound similar, but the failure modes are different. Holding applications care about edge lift and adhesion after baking. Insulation applications also need dielectric performance, thickness control, and compatibility with the surrounding system.

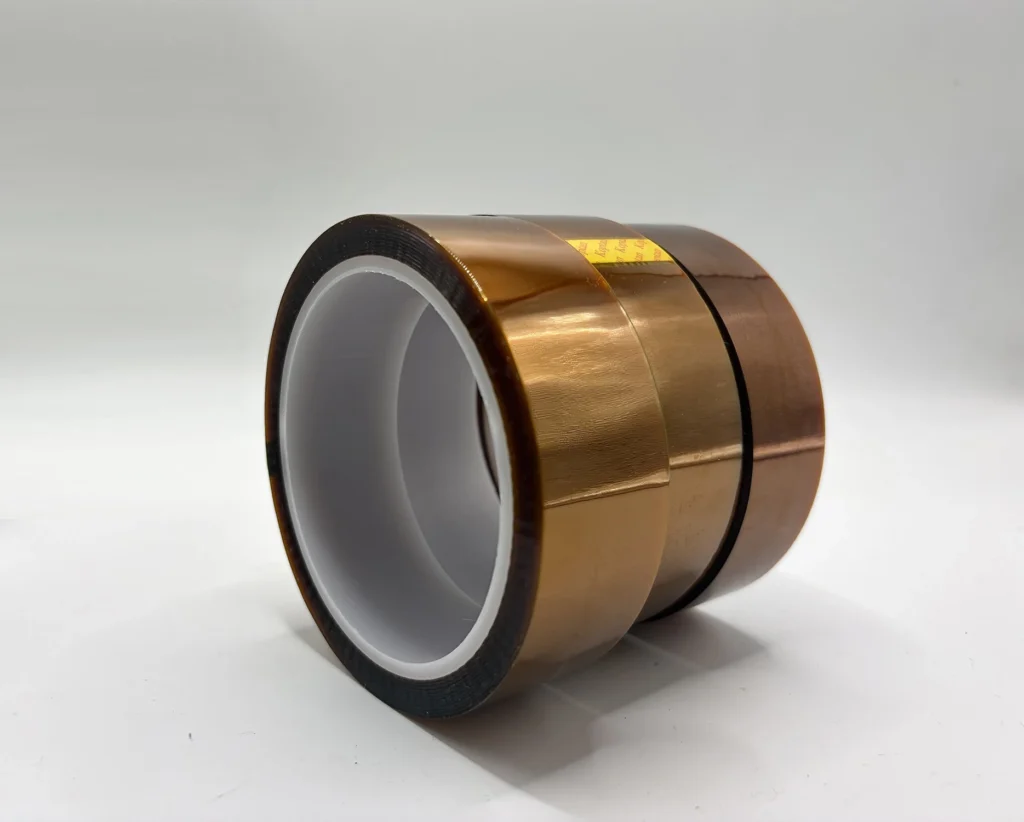

Polyimide / Kapton-type tape is usually selected when a thin, heat-resistant film is needed in a tight space: lead wire wrapping, end-turn bundling, coil edge protection, compact phase separation, or temporary holding before varnish or resin treatment.

It should not be described as a replacement for slot liner, enamel coating, phase insulation paper, mica-based systems, or the complete electrical insulation system. The tape supplier can provide stable material and test data; the motor manufacturer must approve the final assembly under its own operating conditions. A tape may be acceptable for lead wrapping or temporary positioning, yet unsuitable as a permanent insulation layer in a higher-stress design.

What Usually Goes Wrong: Adhesive Aging and Wrap Stability

The common mistake: film vs. finished tape

Polyimide film is often chosen because it handles heat better than many common plastic films. But the finished tape is more than the film. It includes film thickness, adhesive type, adhesive coat weight, release treatment, and slitting quality.

In motor coil insulation tape, the first weak point is often not the film. It is the adhesive system or the way the tape relaxes after wrapping. A tape may survive a short bake but lose tack after longer heat exposure, or stick well to steel yet lift from its own backing after spiral wrapping. ASTM D1000 is relevant here because it covers pressure-sensitive adhesive-coated tapes used as electrical insulation and includes polyimide film among the listed backings, as well as tests for adhesion, dielectric breakdown voltage, accelerated aging, flagging, thickness, and width.

Heat aging: the adhesive tells the real story

Heat aging is not just discoloration. The tape can still look acceptable while its adhesive has hardened, lost tack, transferred residue, or weakened its bond to the backing. In winding work, that can show up as edge lifting, loosened wraps, or poor holding before varnish curing.

This is why buyers should ask for adhesion data before and after heat exposure, not only room-temperature peel adhesion. ASTM D3330 measures peel adhesion of pressure-sensitive tapes and is useful for quality assurance, but peel data alone does not prove the tape will behave well inside your motor. A peel number helps compare consistency; it does not replace a trial on the actual wire, coil geometry, baking condition, and varnish system.

Wrap stability: more than just tack

Wrap stability is another place where “good on paper” tapes fail. Initial tack helps, but it is not the whole story. A narrow polyimide tape for motor winding insulation wrapped around a small bend radius is under stress. If the operator stretches it too much, the backing wants to recover. If the overlap is too small, the edge has less support. If the slitting edge is rough, the tape may start lifting from that weak point. If the adhesive is too soft, it may creep during heating. If the tape is too thick for a compact coil, it may bridge instead of conforming.

ASTM D3759 covers breaking strength and elongation of pressure-sensitive tapes, including machine and cross directions. For winding buyers, this data still needs to be read together with wrap tests on the actual coil geometry.

Choosing the Right Tape Construction

PET, polyimide, or glass cloth

Choose by the process, not by the material name alone.

PET tape may fit lower-temperature holding, cost-sensitive insulation, and general electrical wrapping. Polyimide / Kapton-type tape is stronger when the design needs thin insulation, heat resistance, and dielectric performance in a compact area. Glass cloth electrical tape is useful when mechanical strength, abrasion resistance, or tear resistance matters more than a thin profile.

Do not assume glass cloth tape automatically means extreme finished-tape temperature performance. The backing may be strong, but the adhesive and construction still define the real working limit.

Silicone or acrylic: chemistry is not a guarantee

Adhesive choice should be handled with the same caution. For high-temperature electrical tape, buyers often evaluate silicone adhesive first because of its heat-aging behavior in demanding electrical applications. Acrylic adhesive may still be used in some cases because of cost, initial tack, or bonding behavior on certain surfaces.

The mistake is treating adhesive family as a guarantee. Finished-tape construction matters more than the label. Ask for the adhesive type, but also ask how the tape performs after heat aging, whether adhesion to backing is stable, and whether the tape has been checked against the varnish or resin used in your process. The practical question is not “silicone or acrylic?” It is: after wrapping, baking, and varnish exposure, does the tape still do the job?

Buyer Checks Before Bulk Ordering

Varnish and resin compatibility

Varnish compatibility is often the point where a sample stops being promising and becomes risky. Motor windings may see solvent-based varnish, solventless resin, heat curing, vacuum pressure impregnation, or other processes. These conditions can affect the adhesive layer, not just the film.

Possible issues include bubbling, edge lift, adhesive softening, adhesive transfer, or contamination around the wrap. The buyer should test the tape with the actual varnish, resin, cure profile, and winding tension.

A common trial pattern is worth watching: the tape passes a flat-panel adhesion check, but after wrapping around a small coil edge, baking, and varnish exposure, the edge begins to lift. In that case, the film may not be the problem. The failure may come from wrap tension, bend radius, adhesive softening, or poor compatibility with the varnish system.

Data to request

A practical purchasing review should focus on finished-tape data, not only film properties. For motor winding use, buyers should separate baseline electrical checks from process survival checks. Dielectric breakdown voltage is a baseline item. Heat-aged adhesion, adhesion to backing, flagging behavior, varnish compatibility, width tolerance, slitting edge quality, and batch consistency usually decide whether the tape survives winding, baking, and impregnation.

Relevant data includes thickness, adhesive type, dielectric breakdown, heat-aged adhesion, tensile strength, elongation, flagging, varnish compatibility, width tolerance, and batch consistency. The point is not to collect numbers for a file; it is to understand actual process risk.

Questions for your supplier

Ask whether the TDS refers to the finished tape or only the film. Ask what adhesive system is used. Ask whether heat aging data is available. Ask whether the supplier can slit narrow widths with stable tolerance. Ask whether samples can be tested under winding, baking, and varnish conditions before bulk ordering.

A reliable supplier should not promise that one tape solves motor insulation. The better answer is practical: construction, data, limits, and a sample for process trial.

For buyers comparing tapes for winding trials, a finished-tape TDS and a small custom-slit sample are more useful than film data alone.

Final Note

Kapton tape for motor coils can be the right choice in many local insulation and wrapping jobs. It can also be the wrong choice if the buyer ignores adhesive aging, wrap stability, or varnish compatibility. Final approval should be based on the motor manufacturer’s own insulation design, operating voltage, thermal class, winding method, resin or varnish system, and internal validation.

FAQ

Standards Mentioned

• ASTM D1000
• ASTM D3330/D3330M
• ASTM D3759/D3759M
