High-Temp Gold Finger Masking Solutions: Polyimide Tape for Reflow & Wave Soldering
Application Summary
In electronics manufacturing, Reflow Soldering and Wave Soldering are critical processes used to attach components to printed circuit boards (PCBs). The high temperatures and chemicals involved can cause severe damage if proper protection is not used. Polyimide Tape with silicone-based adhesives (PSA) is specifically designed for these high-temperature applications. Compared with many acrylic adhesive systems, silicone PSA is generally better suited for short-term high-temperature soldering exposure. However, final performance still depends on peak temperature, dwell time, flux chemistry, PCB surface condition, and removal timing. This makes it the ideal choice for Gold Finger Protection and other sensitive PCB areas during soldering.
Common Problems (Failure Modes)
The following are common failure modes encountered during the soldering process:
Edge Lift: Due to inadequate wet-out or chemical interactions with flux, the tape may lose adhesion at the edges, affecting soldering quality. Silicone PSA offers better adhesion strength at high temperatures compared to acrylic adhesives, reducing this issue.
Adhesive Transfer: The cross-linking density of the adhesive may break down under extreme heat, causing the adhesive to transfer onto the PCB. Silicone adhesives, however, maintain their integrity and prevent such transfer, providing clean separation without residue.
Static Charge: In SMT (Surface Mount Technology) and semiconductor applications, static discharge can damage components. ESD-safe Polyimide Tape ensures electrostatic protection by preventing static charge accumulation during the soldering process.
Outgassing: A critical issue where outgassing during high-temperature soldering can cause voids in the solder joints, which affects the quality and reliability of the PCB. Silicone PSA minimizes this risk due to its chemical stability.
Why Solder Leakage Happens Around Masking Tape Edges
Solder leakage is usually not caused by temperature alone. In PCB masking, leakage often starts at the tape edge when adhesion is not strong enough, the tape is not fully pressed down, or flux and cleaning chemicals reach the boundary between the tape and the PCB surface.
During wave soldering or lead-free reflow, the board may experience high peak temperatures and chemical exposure at the same time. If the tape edge lifts even slightly, molten solder or flux can creep under the masking area and affect gold fingers, pads, or contact zones. This is why tape thickness, adhesive stability, edge wet-out, and removal timing should be checked together instead of judging the tape only by its maximum temperature rating.

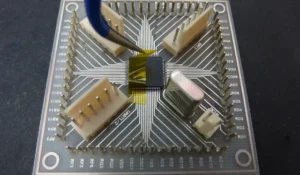

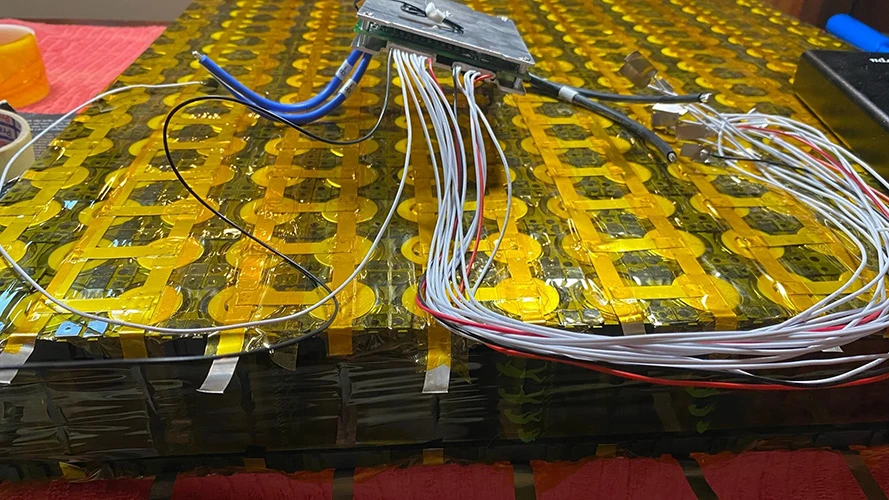

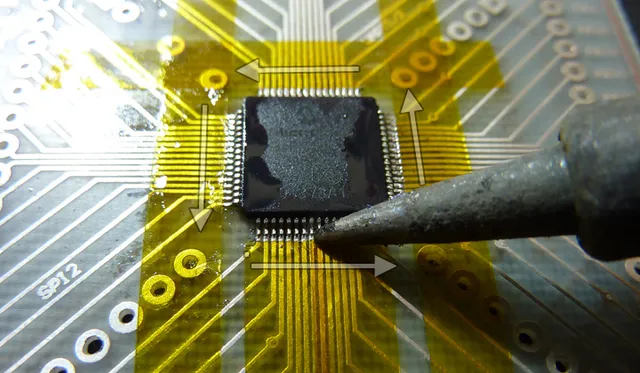

For gold finger masking, polyimide tape with silicone adhesive is usually preferred because it combines heat resistance, dimensional stability, and clean removal. ESD polyimide tape should be considered when masking is performed near static-sensitive components or inside ESD-controlled production areas.
Recommended Tape Types

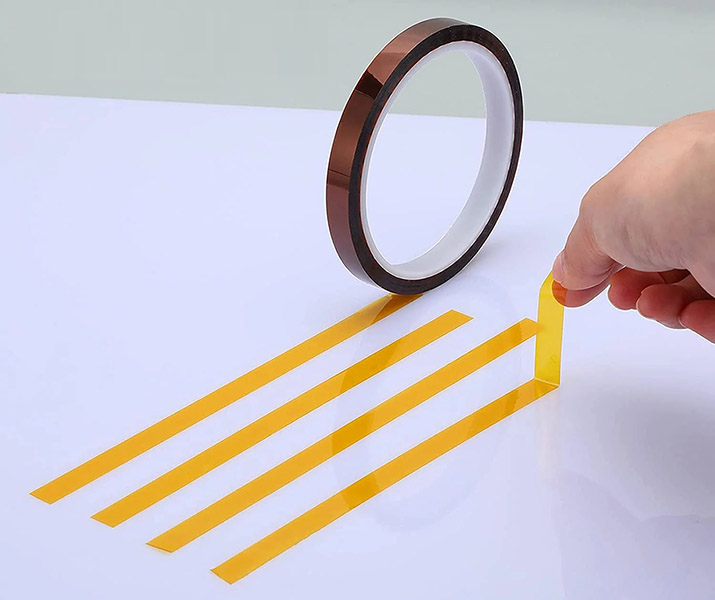

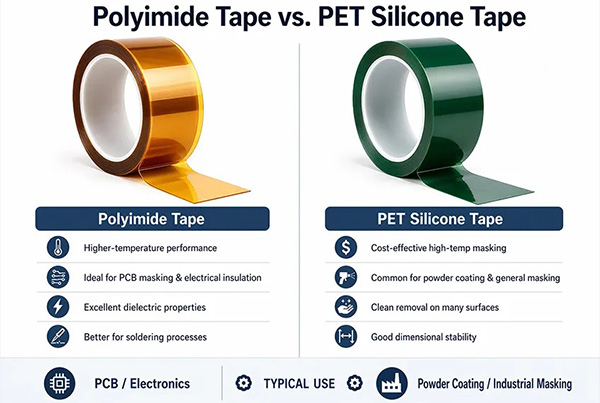

Polyimide Tape (Silicone PSA): Our Polyimide Tape utilizes a thermosetting silicone adhesive system. Unlike acrylic alternatives, silicone PSA can withstand up to 260°C without losing adhesion or contaminating the PCB with residue. This makes it perfect for Gold Finger Protection and Lead-Free Reflow soldering.
ESD Polyimide Tape: Designed for ESD-sensitive environments, this tape prevents static discharge, making it ideal for use in SMT and semiconductor applications. It also offers high-temperature protection, ensuring no residue during the soldering process.
If your PCB masking process needs repeated custom widths, roll length control, or silicone adhesive polyimide tape supply, see our polyimide tape supplier for PCB masking page for factory-direct options.
Selection Checklist
When selecting a tape for Reflow and Wave Soldering, consider the following factors:
Substrate Compatibility: Ensure the tape is compatible with the PCB material. Polyimide Tape and ESD Polyimide Tape work well with most substrates used in PCB manufacturing.Temperature Resistance: Choose a tape that can withstand the temperatures required for Lead-Free Reflow soldering, up to 260°C.
Dwell Time: The tape must be able to maintain its integrity throughout the entire soldering process, from application to cooling.
Peel Adhesion: Ensure the tape has the proper peel adhesion strength (N/25mm) to prevent Edge Lift during high-temperature soldering.
Residue Tolerance: Select a tape that leaves no residue after removal to avoid contamination or interference with other processes.
Edge Sealing: Check whether the tape edge stays fully bonded after reflow or wave soldering exposure, especially around gold fingers, slots, and irregular PCB edges.
Typical Tape Constructions
| Tape Type | Film Backing | Adhesive System | Total Thickness | Peak Temperature | Release Liner |
|---|---|---|---|---|---|
| Polyimide Tape | Polyimide Film | Silicone PSA | 0.05 mm | 260°C | Removable Polyester Liner |
| ESD Polyimide Tape | Polyimide Film | ESD-Safe Silicone PSA | 0.05 mm | 260°C | Removable Polyester Liner |
Related Products
Silicone Polyimide Tape (K-620)
Acrylic Polyimide Tape (K-610)
Browse All Products Datasheets
Documents We Can Provide
We provide the following documents for customer assurance:
TDS (Technical Data Sheet): Detailed performance and technical specifications.
Traceability: Full traceability for quality control.
Application guide for surface preparation, bake profile selection, and removal best practices.
Request a sample of our Polyimide Tape for testing in your soldering applications.
Contact Our Engineers: Get in touch with our engineering team for customized solutions or technical support.
