Powder Coating Tape Residue After Bake: Key Checks

Table of Contents

Why Powder Coating Tape Leaves Residue After Bake — What to Check Before Reordering

Powder coating tape residue after bake is one of those problems that can waste more time than people expect. At first glance, it looks simple: remove the tape, see residue on the part, blame the tape, reorder something else. In real production, it is often not that simple. The same powder coating masking tape can remove cleanly on one job and leave adhesive behind on another. The difference is usually found in the process around the tape — the part surface, the bake cycle, the cooling stage, or the way the tape is removed.

That is why it makes sense to stop and check a few basics before reordering the same roll or switching suppliers too quickly. If the residue keeps showing up in the same place, or only under one set of bake conditions, the tape may only be part of the story. And if you can identify the real cause early, you save more than tape cost. You save rework, cleaning time, and the back-and-forth that slows production.

When Powder Coating Tape Leaves Residue, Check the Process First

Masking problems are frustrating because they often show up at the wrong stage. The tape has already done its job through the bake, the coating is cured, and then the trouble appears during removal. Residue, tape fragments, edge shadow, or difficult cleanup can all turn a routine masking step into a production delay.

Still, the first useful question is not “Which tape should we buy next?” It is “What changed in the tape, surface, oven cycle, or removal method?” If residue appears on every part in a batch, the tape grade or oven condition deserves attention. If it appears only on one part type, one corner, or one specific edge, it may be a more local problem.

This is where many buyers lose time. They look only at the tape and ignore the system around it. In powder coating, tape performance is part of the process, not separate from it.

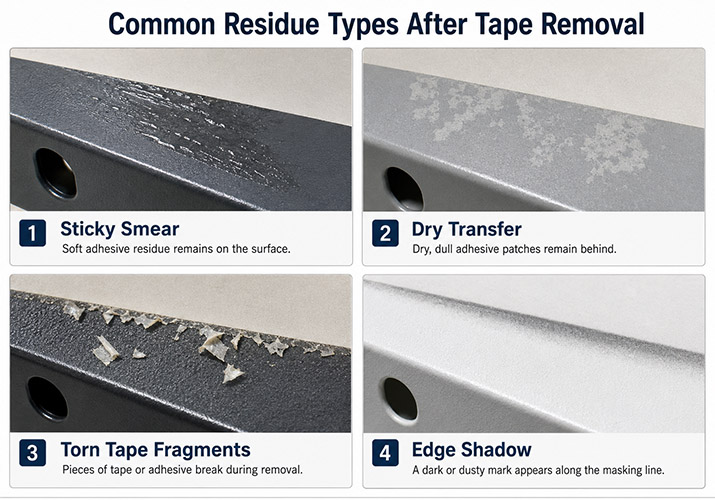

Sticky Smear, Dry Transfer, or Torn Tape? The Residue Type Matters

Not all powder coating tape residue looks the same, and that is actually helpful. The appearance of the failure often points you toward the next thing to check.

A sticky smear usually means soft adhesive transfer. The tape comes off, but a tacky film or patch remains on the masked edge or nearby surface. That often points to heat stress, surface contamination, or an adhesive that bonded too aggressively under the process conditions.

A dry transfer looks different. Instead of a soft smear, you see dull, dry residue left behind, sometimes in broken patches. This can suggest that the adhesive changed character during the bake or that the bond failed in a different way.

Torn tape fragments tell another story. In that case, the backing or adhesive may be breaking during removal. That can be caused by removal angle, local overheating, edge stress, or a tape construction that is not ideal for the job.

Then there is edge shadow — a mark near the masking line that may look like residue at first. Sometimes it is adhesive-related. Sometimes it is powder buildup, slight edge bleed, or a coating transition issue rather than classic adhesive transfer.

If you are trying to diagnose masking tape residue after bake, this visual check is one of the fastest ways to avoid guessing.

A Higher Temperature Rating Does Not Guarantee Clean Removal

Many buyers searching for a high temp tape for powder coating assume the safest choice is the tape with the highest heat claim. That sounds logical, but it is only part of the picture.

A high temperature tape for powder coating still has to perform in the actual bake cycle, not just on paper. The real conditions include ramp-up, peak heat, dwell time, part thickness, part mass, airflow, and cooling. A light panel and a heavy metal part do not behave the same way in the oven. A part with more thermal mass may hold heat longer, and that longer exposure can change how the adhesive behaves during removal.

So yes, temperature rating matters. But it should be treated as a first filter, not a final answer. A tape that looks suitable on a datasheet may still leave residue if the dwell time is long, the part stays hot for longer than expected, or the tape is removed well outside its best removal window.

That is why two buyers can both use “high temperature tape for powder coating” and still report very different results.

Sometimes the Adhesive Is Reacting to the Process, Not Simply “Failing”

This is an important point. Residue does not always mean the adhesive was bad. Sometimes the adhesive is reacting to the real process conditions, and the process pushed it into a failure mode.

One common issue is adhesive transfer. The tape backing pulls away, but part of the adhesive stays on the part. Another is cohesive failure, where the adhesive layer splits internally instead of releasing as a clean whole. You may also see a softened adhesive layer that seems to flow more than expected, especially after a long bake.

This is where buyers sometimes jump too quickly from polyester tape to polyimide tape, or from one green tape to another, without checking the real fit. PET silicone tape and polyimide tape can both work in high-temperature masking, but neither one is automatically correct just because of the backing material. Adhesive type, coat weight, thickness, edge geometry, and removal timing matter too.

So if the powder coat masking tape leaves residue, the better question is not “Which material sounds more premium?” It is “Which construction matches our bake and removal conditions better?”

A Treated or Contaminated Surface Can Make Good Tape Look Bad

A tape that works well on a clean sample plate may behave very differently on a real production part. That is especially true in powder coating, where the part may have gone through washing, degreasing, blasting, rinsing, conversion coating, drying, or other pre-treatment steps before masking.

Oil residue, moisture, dust, cleaning chemical residue, or uneven surface condition can all affect tape performance. Even a good powder coating masking tape can leave residue if it is applied onto a surface that changes the bond too much during bake.

This does not mean every failure is a contamination problem. It simply means surface condition deserves a place in the diagnosis. If the same green powder coating tape removes cleanly on one substrate but not another, surface condition may be the missing piece. If the problem appears only after a certain pre-treatment run or only on one product family, the tape may be revealing a process inconsistency rather than creating it.

Silicone contamination can affect coating appearance in some cases, but it should not take over the whole diagnosis unless other signs point in that direction. This article is mainly about residue after bake, not every possible coating defect on the line.

The Removal Window: Hot Peel, Cold Peel, or After Partial Cooling?

A lot of practical masking problems come down to timing.

Some operators remove powder coating masking tape while the part is still warm. Others wait until the part is fully cool. In some cases, partial cooling works better than either extreme. There is no universal rule that hot peel is always best or cold peel is always safest.

The reason is simple: removal is part of the process. The coating edge condition, the tape backing, the adhesive state, and the part temperature all affect the result. Remove the tape too early and the edge may still be vulnerable. Remove it too late and the adhesive may hold more aggressively, or the tape may tear more easily.

If you want cleaner results, test the removal window deliberately. Use the same tape on the same part and compare warm removal versus delayed removal. Watch not only for powder coating tape residue, but also for edge definition, tearing, and handling ease. On many lines, this test gives a faster answer than changing tape immediately.

“Green Powder Coating Tape” Is Not a Technical Specification

This point is worth stating clearly because many buyers use color as shorthand. They ask for green powder coating tape, and the supplier knows roughly what product family they mean. That is fine as a starting point. It is not enough as a specification.

Green does not tell you the full construction. It does not confirm the adhesive system. It does not tell you the thickness, the bake range, or the clean removal behavior. Two green tapes can look nearly identical on the roll and still behave quite differently after a bake cycle.

If the process is sensitive, buyers should confirm a few basic details: backing material, adhesive type, total thickness, and intended bake condition. That is a much stronger basis for selection than color alone.

In other words, green powder coating tape is a buying phrase. It is not a full technical description.

Before You Reorder: Share the Failure Details, Not Just the Tape Size

When residue is the issue, it helps to send more than “we need 25 mm green tape.”

A supplier can usually give a better recommendation if you share five simple details:

current tape type, color, and width
bake temperature and time
when the tape is removed
photos of the residue
the surface material being masked

That is enough for a practical first discussion. It is not a heavy engineering form, and it is much more useful than sending only roll size.

This also improves the quality of the answer you get back. A supplier who sees the residue photo, understands the bake time, and knows whether the part is steel, aluminum, or another surface can usually make a more realistic recommendation than someone who only receives “the tape left glue.”

Test on the Real Part Before Changing the Order

Before placing a new order, run a small trial on the real part. Not on a random test plate. Not on a clean bench sample. Use the actual part, actual bake cycle, and actual removal timing from production.

Try two or three options if possible. Compare residue, edge clarity, tearing, ease of removal, and the time operators need to remove the tape. A tape that costs slightly more per roll may save time if it removes cleanly. A lower-cost tape may still be the right choice if the process is mild and consistent.

The important thing is to test under real conditions. That is usually where the useful answer appears.If you are reviewing a residue problem now, start with the basics: send the current tape details, bake condition, removal timing, and a few clear photos. That is often enough to decide whether you need a different tape construction, a different removal window, or a closer look at the process.

FAQ

If residue appears only on one edge, is it still a tape problem?

Not always. Local residue near one edge may point to surface contamination, local heat buildup, edge pressure, or removal angle. If the problem appears across all parts and all masked areas, the tape grade or bake condition becomes more likely.

Is green powder coating tape always suitable for high-temperature masking?

No. Green is a common identifying color, not a full specification. Buyers should still confirm backing material, adhesive type, thickness, and expected clean removal behavior under their bake conditions.

Should powder coating tape be removed hot or cold?

There is no single rule for every line. Some tapes remove better while the part is still warm, while others perform better after partial or full cooling. The best approach is to test removal timing on the actual part and process.

What should I send a supplier if my powder coat masking tape leaves residue?

Start with five practical details: the current tape type and width, bake temperature and time, when the tape is removed, clear photos of the residue, and the material being masked.

Will switching from polyester tape to polyimide tape solve residue problems?

Not automatically. Polyimide tape may help in some applications, but residue is not determined by backing alone. Adhesive system, thickness, bake cycle, surface condition, and removal timing all affect the result.
