Why PTFE Heat Sealer Tape Fails on Packaging Lines

Table of Contents

When Tape Failure Is Not Just a Tape Problem

When a packaging line starts leaving residue on the sealing jaw, dragging film onto the hot bar, or producing weak heat seals, the tape is usually the first part people blame. Sometimes they are right. A worn PTFE cover can absolutely cause sticking, film drag, poor release, and inconsistent sealing.

But in real production, PTFE heat sealer tape failure is often a system problem. The tape is working in a difficult place: heat, pressure, film additives, cleaning chemicals, sharp jaw edges, operator handling, and repeated cycles all meet in the same contact zone. Change one variable — dwell time, jaw pressure, platen temperature, film material, or the way the tape was installed — and the same tape can behave very differently.

In this article, “PTFE heat sealer tape” refers mainly to adhesive-backed PTFE film tape and PTFE coated glass cloth tape used on sealing jaws, hot bars, platens, impulse sealing wires, and related packaging machine contact areas. It does not refer to plumbing thread seal tape or non-adhesive PTFE sealing tape for pipe threads.

So the useful question is not simply, “Which PTFE tape is best?” A better question is, “How did the tape fail, and what does that failure pattern tell us?”

Edge lift, adhesive transfer, film sticking, tearing, and weak seals usually point to different root causes. Treating all of them as “bad tape” is how buyers waste samples, maintenance teams lose time, and the real problem stays on the machine.

For a broader application overview, see our Industrial Heat Sealing hub for PTFE tape use on sealing jaws, hot bars, and packaging equipment.

What Adhesive-Backed PTFE Tape Actually Does on a Heat Sealer

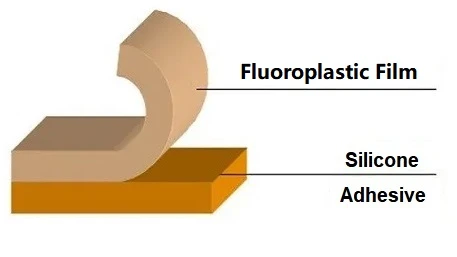

Adhesive-backed PTFE heat sealer tape is not just a protective sticker. On a sealing bar, hot bar sealer, impulse sealing wire, or platen, it normally has three jobs.

First, it provides a non-stick release surface so softened PE, PP, laminated film, shrink film, or pouch material does not bond to the metal jaw. Second, it protects the sealing surface from packaging film residue and mechanical scratches. Third, it helps reduce cleaning downtime by limiting buildup on the contact area.

That sounds simple, but the tape is still part of the heat-sealing system. Heat must transfer through it. Pressure must reach the sealant layer evenly. The tape must not wrinkle, bubble, or create hot spots and cold spots. If the PTFE film tape or PTFE coated glass cloth tape is contaminated, damaged, too thick for the sealing window, poorly installed, or sitting on a damaged jaw, the seal may fail even if the PTFE surface itself is not the original problem.

Buyers may describe these materials as PTFE film adhesive tape, PTFE coated glass cloth tape, Teflon film tape, or Teflon glass cloth tape. These names often point to similar material families, but for technical sourcing, the important point is still the backing, adhesive, tape position, and failure mode.

“Teflon” is also used by some buyers as a search term, but PTFE is the more precise material description unless a specific branded product is being discussed.

Film Sticking: Worn Release Surface or Dirty Process Window?

Film sticking is usually the first symptom operators notice. The bag does not release cleanly, the web drags across the sealing bar, or melted film starts collecting on the tape surface.

The obvious cause is loss of non-stick performance. The PTFE release surface may be scratched, worn, blistered, or cut. On PTFE glass cloth tape, visible fabric texture or exposed glass fibers are warning signs. On PTFE film tape, shiny worn patches or thinning can show that the release surface is near the end of its useful life.

But sticking can also come from the process side. Excessive temperature, long dwell time, uneven pressure, or aggressive film additives can leave residue on top of the tape. In that case, the operator sees “film sticking to PTFE tape,” but the real issue may be contamination or an over-tight sealing window.

A practical first check: clean a small cooled area and run a short trial. If release improves briefly and then gets worse again, review temperature, dwell time, film residue, and cleaning frequency. If cleaning does not help and the tape face is visibly worn, replacement is more likely needed.

A smooth PTFE film adhesive tape may give cleaner release on low-build contact areas, while a PTFE coated glass cloth tape usually handles repeated pressure and abrasion better. That does not make one “better” in every case. It means the surface condition and machine load need to be checked together.

Adhesive Residue: Look Beyond the PTFE Layer

Heat sealer tape residue is frustrating because it turns a quick tape change into a cleaning job. It can also lead operators to scrape the sealing jaw with hard tools, which may damage the surface and make future buildup worse.

Adhesive residue may come from old tape removal, extended service life, poor jaw cleaning, or adhesive exposed to heat and pressure beyond its comfortable operating condition. Film deposits can also mix with adhesive and look like one burned layer.

Do not write this off as “PTFE failed.” In most heat sealer tapes, PTFE is the release surface or coating; the residue often involves the pressure-sensitive adhesive, packaging film contamination, or both. Dark brown or black buildup can suggest overheating, contamination, or long service, but it should still be checked against the actual temperature, dwell time, and maintenance history. A pale sticky residue may point more toward adhesive transfer during removal.

If residue is the main complaint, asking only for “higher temperature PTFE tape” may not solve it. The better answer may be improved surface preparation, a different adhesive system, a shorter replacement interval, or a process adjustment.

If your issue is not limited to heat sealing, our Troubleshooting section covers adhesive residue, lifting, weak holding, and tape failure in other industrial tape applications.

Edge Lift: The Small Corner That Stops the Line

PTFE heat sealer tape edge lift often starts small. One corner lifts, film catches it, and by the end of the shift the strip has curled, wrinkled, or pulled away from the sealing jaw.

The common causes are not glamorous: the jaw surface was not clean, the adhesive-backed tape was stretched during application, the tape width was too narrow, or the edge sits directly in the film drag path. Old adhesive, oil, dust, and burned film residue can all weaken initial adhesion. The tape may look fine at room temperature, then lift after a few heat cycles.

Stretching is a quiet killer. Adhesive-backed PTFE film tape and PTFE glass cloth tape should not be applied like electrical tape. If the operator pulls it tight to make it look flat, the tape can relax during heating and cooling. That stored tension often shows up as wrinkles, edge lift, or diagonal waves.

Before blaming adhesive strength, check the installation method: cool the bar, remove old residue, clean the surface, apply the tape without tension, press the edges firmly, and inspect after the first trial run.

This is also where pre-cut strips or custom slit rolls can help. If operators cut tape manually every time, small width errors and rough edges become normal. For repeat production, controlled width and clean edges can reduce unnecessary variation.

Tearing, Fraying, and Wear-Through

If the tape tears, frays, or wears through in the same place every time, that location is usually seeing concentrated mechanical stress.

On L-bar sealers, corners and knife areas can be hard on tape. On continuous equipment, sliding contact can wear the same zone again and again. On an impulse sealer, a raised wire, uneven jaw face, or damaged pressure pad may create a narrow pressure line. A burr or rough sealing bar edge can cut into new tape long before the PTFE release surface would normally wear out.

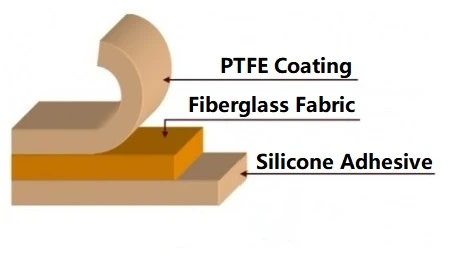

PTFE glass cloth tape is usually the stronger option where repeated pressure, abrasion, wider sealing jaws, or edge damage are the main issues. The glass cloth backing adds dimensional stability and tear resistance. PTFE film tape is more suitable where a smooth, low-build release surface matters more than heavy reinforcement.

Still, do not treat this as a universal ranking. A stronger tape may last longer in one machine area but affect heat transfer or clearance in another. A thicker tape is not automatically the safer tape. On some machines, the extra build may change the way heat and pressure reach the sealant layer.

If you are comparing tape structures, read our PTFE film tape vs PTFE glass cloth tape comparison article before changing grades.

Weak Seals After Tape Replacement

Weak heat seals are often blamed on film, heating elements, or operator settings. Tape can also contribute, but usually indirectly.

Air bubbles under the adhesive-backed tape can create local insulation. Residue buildup can disturb pressure distribution. A lifted edge can reduce contact. A worn or uneven PTFE release surface can change heat transfer. A thicker replacement tape may require adjustment to temperature, pressure, or dwell time because the sealant is no longer receiving heat in exactly the same way.

If weak seals appear immediately after a tape change, check installation quality, tape thickness, surface flatness, and jaw alignment before rejecting the film. If weak seals appear gradually, look for wear, contamination, or hot and cold spots across the sealing bar.

A simple habit helps: keep one sample seal from a good production run. When the seal starts to look weak, compare the new sample with the old one. It is not a lab test, but it helps the team notice whether the issue is seal width, wrinkles, burn-through, or incomplete bonding.

For engineers, the key point is this: weak heat seals should be treated as a sealing system issue. The tape is one part of that system, not the whole explanation.

Troubleshooting Matrix: Symptom → Likely Cause → First Check

Symptom	Likely Cause	First Check
Film sticking	Worn PTFE release surface, high temperature, long dwell time, film residue	Inspect the tape face and clean a cooled test area
Brown or black residue	Overheating, contamination, old adhesive, long service	Review temperature, dwell time, and removal method
Edge lift	Poor cleaning, tape stretch, wrong width, film drag	Check bar cleanliness and application tension
Wrinkles or bubbles	Trapped air, uneven pressure, heat applied too soon	Press cooled tape and inspect after trial heating
Tearing or fraying	Burrs, sharp edges, knife contact, high friction	Inspect jaw edge, corners, and recurring wear location
Weak heat seals	Uneven heat transfer, tape bubbles, residue, pressure loss	Check tape surface, bar alignment, and sealing window

This matrix is not meant to replace machine troubleshooting. It is a starting point that prevents a common mistake: changing tape type before understanding the failure mode.

When to Switch Tape Construction

If the same failure repeats, tape construction should be reviewed.

Consider PTFE glass cloth tape, PTFE coated glass cloth tape, or similar glass-fabric reinforced constructions when the sealing area faces repeated pressure, abrasion, wider jaws, sharper edges, or mechanical wear. Consider PTFE film tape or PTFE film adhesive tape when the application needs a smoother surface, lower build-up, less texture, or coverage on smaller contact areas.

Some buyers call these “Teflon film tape” or “Teflon glass cloth tape.” That search language is common, but for technical sourcing, PTFE is the safer material description unless a specific branded product is being discussed.

The practical sourcing decision is not to use the thickest or most expensive tape. It is to match tape construction to the failure pattern. If the tape is too thick for the sealing window, heat transfer may change. If the tape is too thin for a harsh contact zone, it may wear quickly. Selection should be based on contact area, film type, pressure, temperature, and actual failure photos.

For buyers still defining the right specification, our PTFE heat sealing tape buying guide explains how to match tape construction to machine type and contact area.

Before Asking for a Quote, Send These Details

A serious supplier can quote faster and more accurately if the buyer sends real application details. “Please quote PTFE tape for heat sealer” is usually not enough.

Useful details include machine type, tape position, current tape width and thickness, roll length or strip length, film material, temperature setting, dwell time if known, photos of the sealing bar, photos of the failed tape, and the main symptom: sticking, residue, edge lift, tearing, weak seals, or fast wear.

This information is not just for price. It helps the supplier judge whether the problem is better solved by PTFE film tape, PTFE glass cloth tape, improved installation, or a process adjustment. It also saves both sides from testing the wrong product.

For specification confirmation, buyers can review our PTFE film tape datasheet or PTFE coated glass cloth tape datasheet before requesting samples.

If you are not sure whether the issue comes from the tape, the sealing bar, or the packaging film, send clear photos of the failed tape and sealing area. A quick review of the failure pattern can often prevent the wrong tape from being ordered.

Technical Reference Basis

This article follows common heat-sealing troubleshooting logic: seal quality is affected by time, temperature, pressure, contact uniformity, tape condition, and film behavior. Public technical guidance from DuPont, Saint-Gobain, 3M, and PTFE tape converters supports the role of adhesive-backed PTFE tape as a non-stick release surface, as well as the need to avoid stretching, bubbles, poor surface preparation, and mismatched tape construction.

FAQ

Why does packaging film stick to PTFE heat sealer tape?

Film can stick when the PTFE release surface is worn, contaminated, overheated, or covered with packaging film residue. Check the tape face, temperature setting, dwell time, and cleaning routine before changing tape type.

What causes adhesive residue on a heat sealing jaw?

Residue can come from overheated adhesive, old tape removal, extended service life, poor jaw cleaning, or film deposits mixing with adhesive. The color and texture can help identify the likely cause.

Why do weak heat seals appear after replacing PTFE heat sealer tape?

New tape may change heat transfer, contact pressure, or jaw clearance. Air bubbles, wrinkles, wrong thickness, or incomplete contact can also create weak or inconsistent seals after replacement.

How can I prevent PTFE heat sealer tape edge lift?

Cool and clean the sealing bar first, remove old residue, apply the adhesive-backed tape without stretching it, press the edges firmly, and run a short trial cycle before full production.

Should I use PTFE film tape or PTFE glass cloth tape?

Use PTFE glass cloth tape for repeated pressure, abrasion, and mechanically demanding contact areas. Use PTFE film tape where smooth release, low thickness, or low-friction movement is more important.

What should I send to a supplier for accurate tape selection?

Send the machine type, tape position, current tape size, film material, temperature, dwell time, failure photos, and the main problem you want to solve.
