Silicone vs Acrylic vs Rubber Adhesive for Glass Cloth Tape: How Each System Fails and How to Select Correctly
If you are comparing silicone, acrylic, and rubber adhesive for glass cloth tape, you are probably not comparing chemistry for fun. Something practical is at stake: residue after baking, edge lifting on a curved part, poor adhesion on coated metal, or an insulation test that does not pass consistently. The fiberglass backing gives the tape strength. The adhesive system decides whether that strength actually works in your process.
Two glass cloth tapes can look almost identical in a catalog: same color, same width, similar thickness. One may be a silicone glass cloth tape for high-temperature masking and cleaner removal. Another may be an acrylic glass cloth electrical tape for coil wrapping. A third may be a rubber adhesive glass cloth tape for 600V dry electrical maintenance. Use them in the wrong place, and the failure mode changes quickly.
The backing is strong. The adhesive sets the failure boundary.

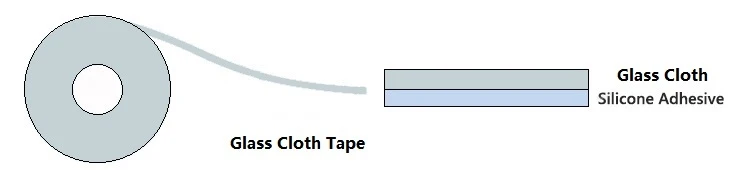

Woven fiberglass backing gives glass cloth tape tensile strength, dimensional stability, abrasion resistance, and heat resistance. That is why glass cloth tapes are used for powder coating masking, motor insulation, transformer wrapping, coil banding, furnace controls, and harness protection.
But the adhesive must wet the substrate, resist recovery force from the stiff cloth, survive heat exposure, and release properly if clean removal is required. For electrical use, buyers should ask which test framework supports the data, not just whether the product is called “insulation grade” (ASTM D1000, UL 510/510A, IEC 60454).
| Adhesive system | Where it usually fits | Where it often fails | Buyer check |
| Silicone adhesive | High-temperature masking, oven curing, holding, harness wrapping, some high-temperature electrical insulation | Long dwell time can still cause residue, lower adhesion, backing darkening, or coating/varnish compatibility issues | Ask for temperature range, dwell-time guidance, removal test, and coating compatibility |
| Acrylic adhesive | Medium-temperature electrical protection, coil wrapping, banding, lead hold-down, aging-resistant applications | Extreme heat, poor low-temperature wet-out, curved parts, or high backing recovery can lead to edge lifting or adhesive hardening | Check temperature rating, initial tack, solvent exposure, and real coil-wrapping test |
| Rubber thermosetting adhesive | 600V dry electrical applications, motor leads, coil outer wrap, electrical maintenance, mechanical holding | Should not be assumed suitable for clean-removal high-temperature masking, oil/solvent exposure, or wet service | Confirm dry-location rating, voltage rating, shelf life, and intended electrical use |
If you are replacing an existing glass cloth tape, do not compare only width, thickness, and price. Send the working temperature, dwell time, surface material, removal requirement, and whether the tape is used for masking, wrapping, or electrical insulation. These details help identify whether silicone, acrylic, or rubber thermosetting adhesive is the safer starting point.
Silicone glass cloth tape: good for heat, but not magic

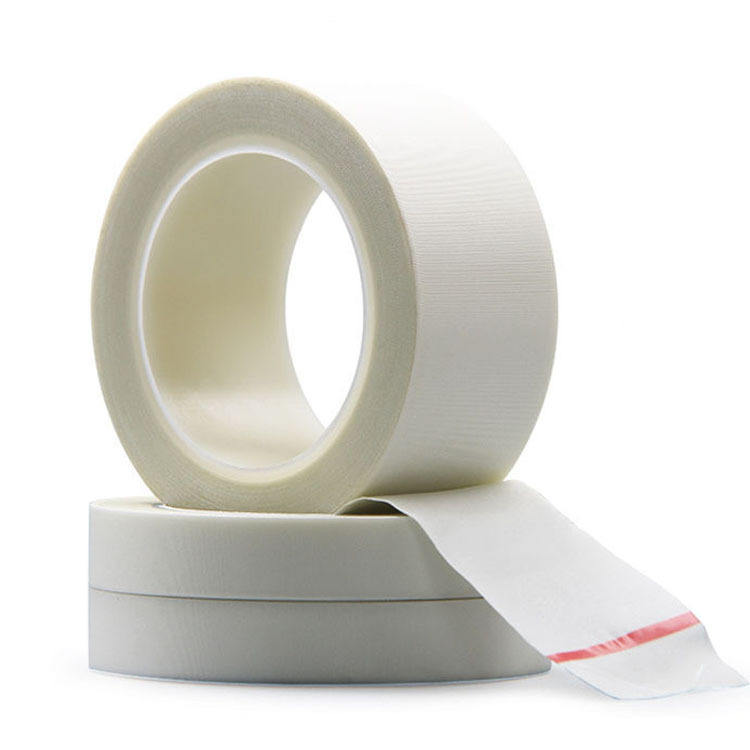

Silicone adhesive is often a strong starting point when the job involves heat and temporary masking. Buyers commonly use silicone glass cloth tape for powder coating masking, oven curing, temporary holding, bundling, and harness wrapping. It is also considered when the process requires lower residue risk after heat exposure.
Still, “silicone” should not be treated as a guarantee. If the process runs longer than expected, the oven has hot spots, or the tape is removed after the adhesive has aged into the surface, glass cloth tape residue after heat can still appear. The root cause may be adhesive overload, excessive dwell time, late removal, or a contaminated substrate.
A shop-floor example makes this clear. A buyer tests a high-temperature glass cloth tape on a clean metal panel for 20 minutes and sees no residue. Later, the same tape is used on a powder-coated part for a longer bake cycle, and the edge lifts or leaves adhesive transfer. The tape did not suddenly become “bad.” The process changed.
If the part will later be painted, varnished, coated, or solvent-cleaned, test compatibility before approving bulk production. Silicone adhesive is often selected for clean-removal work, but clean removal still depends on surface condition, heat exposure, pressure, and removal timing.
Acrylic glass cloth tape: balanced, but easy to misuse in heat
Acrylic glass cloth tape is often useful for general electrical protection, coil wrapping, banding, lead hold-down, and medium-temperature mechanical protection. For motor or transformer insulation, acrylic glass cloth electrical tape can be practical when voltage rating, temperature rating, resin absorption, and application environment match the datasheet.
Its weak point appears when buyers use it as a shortcut for high-temperature masking. Acrylic systems can offer aging resistance and useful solvent resistance, but not every acrylic glass cloth adhesive tape belongs in a high-heat, clean-removal process. Under excessive heat, the adhesive may harden, lose bond strength, or leave more residue than expected.
Another common problem is glass cloth tape edge lifting during coil wrapping. On a small-radius coil, the backing wants to spring back. If the acrylic adhesive has not fully wetted the surface, or if the winding machine applies uneven tension, the edge may flag after post-baking. Add machine oil, dust, or cold storage, and the buyer may report “glass cloth tape not sticking.” The better diagnosis is usually: surface preparation, application pressure, and adhesive choice were not aligned.
Rubber thermosetting adhesive: useful in dry electrical work, not a masking shortcut
Rubber adhesive glass cloth tape needs careful judgment. Some buyers hear “rubber adhesive” and assume it is only low-end. That is too simple. Rubber thermosetting adhesive can be useful in dry electrical insulation and mechanical holding when the tape is designed for that use. It may fit motor leads, switches, furnace and oven controls, coil outer wrap, and electrical maintenance.
The trap is initial tack. Rubber systems may feel easy to apply because they grab quickly. That helps during wrapping and repair work. But initial tack does not prove suitability for clean removal after oven curing, oil exposure, solvent contact, outdoor service, or wet environments. If the requirement is high-temperature masking with clean removal, do not default to rubber thermosetting adhesive. Test silicone or a specialty acrylic system first.
If the tape is used in a dry electrical application and the product data supports that use, rubber thermosetting adhesive may be reasonable. If the same tape is pushed into a coating line, the low unit price can turn into cleanup labor, scrap, and complaints.
A temperature rating is not the whole story
When buyers search for “glass cloth tape high temperature,” they often compare only the highest temperature number. That is not enough for production decisions.
The adhesive in a high-temperature glass cloth tape should be judged by continuous exposure, intermittent exposure, dwell time, heat source, surface material, pressure, and removal requirement. A tape may survive a short thermal cycle but become difficult to remove after a longer one. Another tape may perform well on stainless steel and fail on powder-coated metal.
Before approving a bulk order, test the actual substrate, normal operator pressure or winding tension, real oven cycle, and normal cooling method. Then check residue, adhesive transfer, edge lift, backing discoloration, surface staining, and peel behavior.
Selecting glass cloth electrical tape without guessing
Not all glass cloth tapes are glass cloth electrical tape. A masking tape with glass cloth backing may look strong, but it should not replace a rated electrical tape unless the data supports that substitution.
For electrical use, check voltage rating, dielectric strength, temperature rating, total thickness, adhesive type, flame retardancy, dry-location limitations, UL/CSA information where required, and shelf life. Also confirm whether the tape is intended for coil wrapping, lead anchoring, outer wrap, banding, repair, or transformer insulation.
If the original tape was approved for a motor or transformer application, do not replace it only by width and thickness. Ask for the adhesive system, electrical data, and relevant test framework.
What to send before asking for a recommendation
If you are replacing an existing glass cloth tape, do not send only “25 mm x 33 m” and ask for a price. Send the working temperature, dwell time, surface material, whether removal must be clean, and whether the tape is used for masking, wrapping, or electrical insulation. These five details usually decide whether silicone, acrylic, or rubber thermosetting adhesive is the better starting point.
Also mention oil, solvent, varnish, outdoor weathering, abrasion, thermal spray, or blasting. In these cases, PTFE glass cloth tape, polyimide tape, or a composite construction may be more suitable.
Final takeaway for buyers and engineers
The right glass cloth tape starts with the right adhesive. Fiberglass backing gives strength, but adhesive chemistry controls the real failure boundary: residue, edge lifting, poor adhesion, clean removal, aging, and electrical reliability.
If you are evaluating glass cloth tape for a production process, send your temperature, dwell time, surface, voltage or certification requirements, and removal expectations. We can recommend a starting adhesive system and provide sample rolls for testing before bulk production.
No. Silicone adhesive is often preferred for high-temperature masking and clean-removal needs, but acrylic or rubber thermosetting adhesive may fit some electrical or mechanical applications. If your process requires clean removal after high heat and also involves oil or varnish exposure, do not default to rubber adhesive without testing.
Not automatically. Some glass cloth electrical tapes are designed for insulation and mechanical holding, not clean removal after oven curing. Check adhesive type, removal requirement, and intended use.
Residue usually comes from adhesive overload, excessive dwell time, surface contamination, or cohesive failure inside the adhesive layer. Test removal after the real heat cycle, not only at room temperature.
Silicone adhesive is usually chosen for higher-temperature masking and removal performance. Acrylic adhesive is often used for medium-temperature electrical protection, aging resistance, and general bonding.
Compare adhesive type, thickness, dielectric strength, temperature rating, certifications, shelf life, and test results under real production conditions.
